Wireless electronic circuit for PWB

Development concept

Current mainstream manufacturing process for high-frequency wireless electronic circuit includes arranging antennas, filters, and baluns on a ceramic board and ultimately integrating them onto a PWB.

YKC, on the other hand, proposes the formation of element functions of each part on a PWB right from the beginning (which means that this is not a PWB with integrated components), as opposed to the combination of parts and a PWB.
Fewer parts and fewer implementation steps would enable a faster and less expensive wireless electronic circuit for PWB.

Comparison with rival technologies in high frequency electronic circuits	Performance (loss)	Design performance / Integration performance	Size	Cost	Manufacturing lead time
LSI	○	○	○	××	×
LTCC ceramic PWB	○	○ Distributed element model	◎ High-permittivity 20 or up	○	○
Integrated component / Embedded PWB	○	×	○	△	×
PWB	×→○ Low loss materials	◎ Distributed element model	○ High-permittivity 10 or up	◎	◎

※ Our survey data on GHz-band circuits

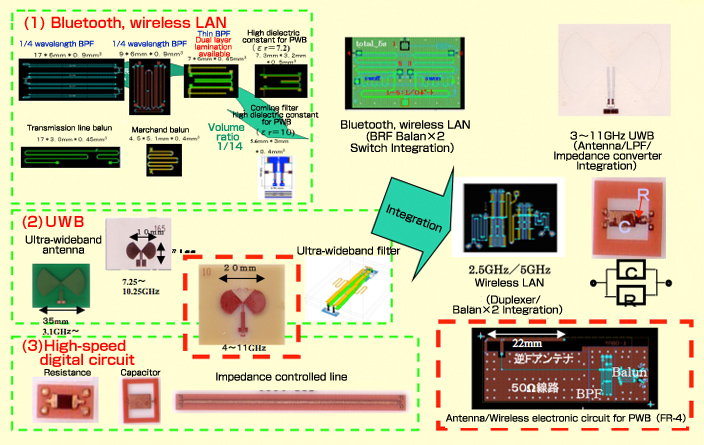

Past development achievements
